Extractors

An extractor is attached to a chain step and pulls a value out of the step’s response into a named variable. That variable is then available to all subsequent steps in the chain via {{variableName}}.

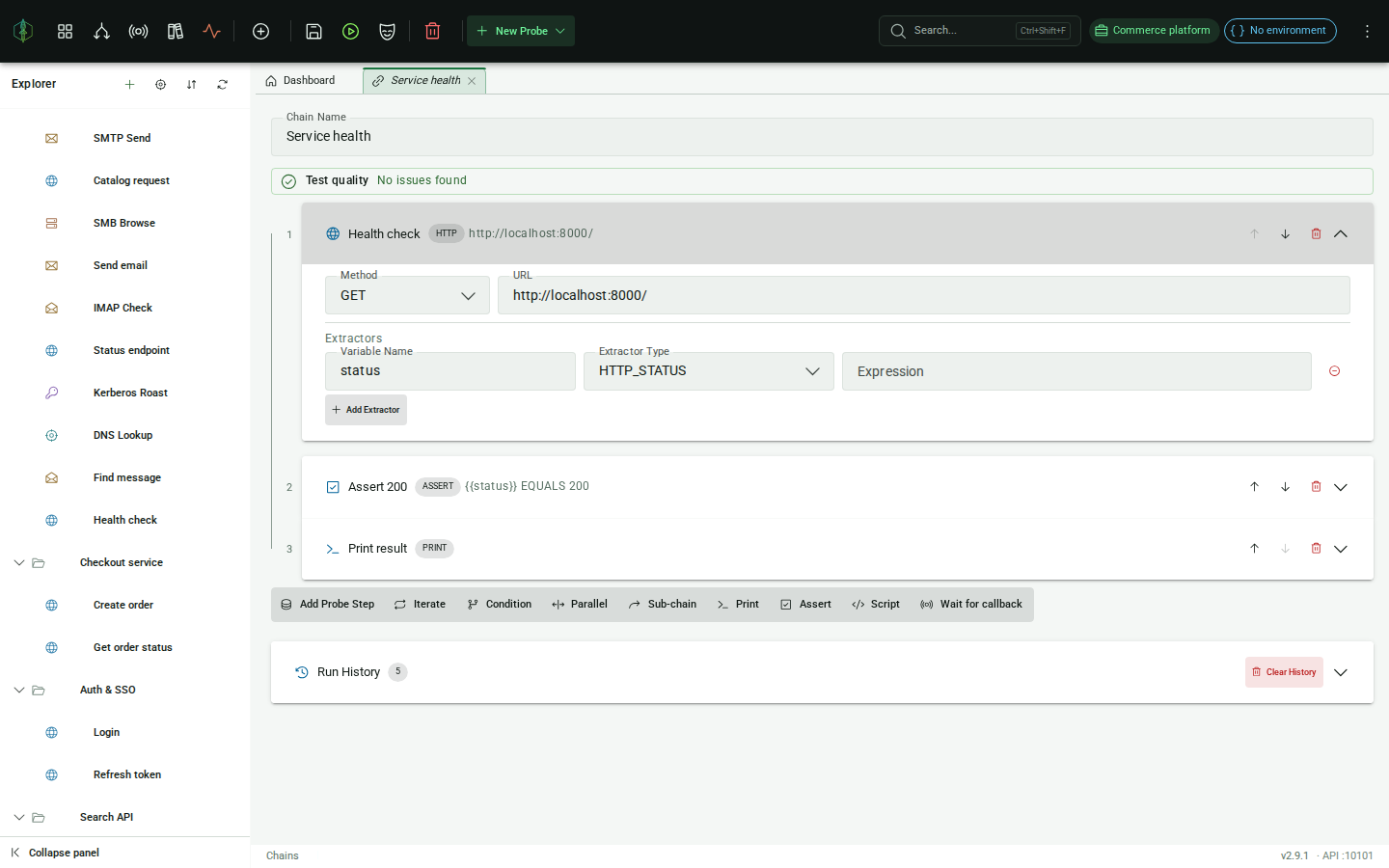

Configuration

Field	Description
Type	Extractor type (protocol-specific, see below)
Expression	What to extract (meaning depends on type)
Variable name	Name of the variable to store the result in

---

HTTP extractors

HTTP_STATUS

Extracts the HTTP response status code as a string.

Field	Value
Expression	(not used)
Example output	"200"

HTTP_JSON_PATH

Evaluates a JSONPath expression against the response body.

Field	Value
Expression	JSONPath string, e.g. $.data.token
Example output	"eyJhbGci..."

HTTP_BODY_RAW

Returns the entire response body as a string.

Field	Value
Expression	(not used)

HTTP_HEADER

Returns the value of a specific response header. The lookup is case-insensitive; if the header appears multiple times the first occurrence is returned.

Field	Value
Expression	Header name, e.g. Content-Type or X-Request-Id
Example output	"application/json"

---

SMTP extractors

SMTP_SUCCESS

Returns "true" if the SMTP exchange completed without any assertion failures, "false" otherwise.

Field	Value
Expression	(not used)

SMTP_EXCHANGE_LINES

Returns the server’s response lines for a specific command, joined as a string.

Field	Value
Expression	The command string to match (e.g. MAIL FROM:<[email protected]>)

Leave the expression blank to match the server greeting exchange.

---

SMTP_OUTCOME

Returns the transport outcome of one exchange, so a chain can branch on how it ended and not only on whether the probe as a whole worked. A reset, a timeout and a refused connection are three different findings, and a success flag cannot tell them apart.

Field	Value
Expression	The command string, matched the way SMTP_EXCHANGE_LINES matches it, or blank for the greeting
Example output	"RST"

Values are OK, EOF, RST, TIMEOUT, MALFORMED_RESPONSE, PARTIAL, CONNECT_REFUSED, CONNECT_TIMEOUT and RESOLVE_FAILED. Blank selects the greeting rather than the last exchange, because the greeting slot is also where a failed connect is recorded.

IMAP extractors

IMAP_SUCCESS

Returns "true" if all IMAP commands completed successfully.

Field	Value
Expression	(not used)

IMAP_EXCHANGE_LINES

Returns the untagged server lines for a specific IMAP command.

Field	Value
Expression	The command string to match (e.g. SEARCH UNSEEN)

Leave the expression blank to match the server greeting.

---

IMAP_OUTCOME

Returns the transport outcome of one exchange, the IMAP counterpart of SMTP_OUTCOME.

Field	Value
Expression	The command string, matched the way IMAP_EXCHANGE_LINES matches it, or blank for the greeting
Example output	"TIMEOUT"

Values are OK, EOF, RST, TIMEOUT, MALFORMED_RESPONSE, PARTIAL, CONNECT_REFUSED, CONNECT_TIMEOUT and RESOLVE_FAILED. Blank selects the greeting, which is where a failed connect is recorded.

LDAP extractors

LDAP_SUCCESS

Returns "true" if the LDAP operation completed without assertion failures.

Field	Value
Expression	(not used)

LDAP_EXCHANGE_RESULT_CODE

Returns the result code for a specific LDAP operation as a string.

Field	Value
Expression	A prefix of the operation string (e.g. BIND cn=admin)
Example output	"0" (success)

---

LDAP_OUTCOME

Returns the transport outcome of one operation. A result code cannot stand in for this, because an operation that died at the socket never received one.

Field	Value
Expression	An operation prefix, matched the way LDAP_EXCHANGE_RESULT_CODE matches it, or blank for the first exchange
Example output	"EOF"

Values are OK, EOF, RST, TIMEOUT, MALFORMED_RESPONSE, PARTIAL, CONNECT_REFUSED, CONNECT_TIMEOUT and RESOLVE_FAILED.

This is the extractor that makes a multi-operation LDAP sequence honest. The probe’s own success is computed from the connect and the assertions, so an operation that dies part way through a sequence still leaves a green probe. Naming that operation here is how a chain sees it.

DNS extractors

DNS_SUCCESS

Returns "true" if all DNS queries completed without any assertion failures, "false" otherwise.

Field	Value
Expression	(not used)

DNS_ANSWER_VALUE

Returns the value of the first answer record from a specific query.

Field	Value
Expression	A prefix of the question string (e.g. A example.com)
Example output	"93.184.216.34"

Leave the expression blank to use the first query’s answer. Useful for extracting a resolved IP and passing it to subsequent chain steps.

---

DNS_FLAGS

Returns the response header flags, in the form dig prints them.

Field	Value
Expression	A prefix of the question string (e.g. A example.com), or blank for the first query
Example output	"qr rd ra"

DNS_AUTHORITATIVE

Returns "true" when the answer was authoritative, "false" otherwise. Selects the query the same way DNS_FLAGS does.

Field	Value
Expression	A prefix of the question string, or blank for the first query
Example output	"false"

Whether an answer came from the zone or from a resolver’s cache is a question the record value cannot answer, since both carry the same bytes. Assert on this when a chain cares about delegation.

Kerberos extractors

KERBEROS_SUCCESS

Returns "true" if the Kerberos operation succeeded, "false" otherwise.

Field	Value
Expression	(not used)

KERBEROS_HASH

Returns the hashcat-ready hash produced by a roasting operation: $krb5asrep$23$… for AS-REP roasting (mode 18200) or $krb5tgs$23$… for Kerberoasting (mode 13100). Empty string for operations that produce no hash (e.g. credential validation).

Field	Value
Expression	(not used)
Example output	[email protected]:…

Pair with an ITERATE over a username wordlist to roast a whole user list and collect hashes into chain variables.

KERBEROS_ERROR_CODE

Returns the KDC error code (0 on success). Useful for username enumeration: 24 (KDC_ERR_PREAUTH_FAILED) means a valid account with a wrong password, while 6 (KDC_ERR_C_PRINCIPAL_UNKNOWN) means the account does not exist.

Field	Value
Expression	(not used)
Example output	"24"

---

SMB extractors

SMB_SUCCESS

Returns "true" if every enabled command in the SMB session completed successfully, "false" otherwise.

Field	Value
Expression	(not used)

SMB_LAST_STATUS

Returns an SMB NT status code (e.g. STATUS_SUCCESS, STATUS_ACCESS_DENIED). Useful for branching a chain on the exact result of a command (access checks, vulnerability probes).

Field	Value
Expression	A substring of the command label (e.g. TREE_CONNECT); blank = last exchange’s status
Example output	"STATUS_ACCESS_DENIED"

SMB_SHARE_LIST

Returns the share names from a LIST_SHARES command, newline-separated. Feed it into an ITERATE step (variable-reference source, whitespace-split) to walk every share.

Field	Value
Expression	(not used)
Example output	"public\nprivate\nIPC$"

SMB_FILE_CONTENT

Returns the content read by a FILE_READ command, so a file read over SMB can feed a later chain step. UTF-8 text when decodable, otherwise a base64 fallback for binary files.

Field	Value
Expression	A substring of the file path (e.g. secret.txt); blank = first FILE_READ result
Example output	"hunter2"

---

SMB_RPC_LINES

Returns the decoded MSRPC result lines from commands such as SAMR_ENUM_USERS, SRVSVC_NETSESSIONENUM or WKSSVC_NETWKSTAUSERENUM, joined with newlines. Reads the most recent exchange that produced any, which makes it feed an ITERATE step directly.

Field	Value
Expression	(optional) A substring filter applied to each line, case-insensitive
Example output	"jdoe\nasmith\nsvc_iis"

SMB_FILE_MATCHES

Returns the entries from DIR_LIST and DIR_LIST_RECURSIVE exchanges, one per line, as the path and the size separated by a tab. When the command carried patterns, the entries already hold only the matches.

Field	Value
Expression	(not used)

SMB_SIGNING_REQUIRED

Returns "true" when any NEGOTIATE exchange reported that the server requires SMB signing, "false" otherwise.

Field	Value
Expression	(not used)

SMB_SESSION_FLAG_IS_GUEST

Returns "true" when any SESSION_SETUP exchange came back flagged as a guest session.

Field	Value
Expression	(not used)

A server that quietly downgrades a failed logon to guest answers successfully, so a chain asserting that authentication worked needs this to tell the two apart.

LSA_DOMAIN_SID

Returns the domain SID reported by LSARPC_QUERY_INFO_POLICY.

Field	Value
Expression	(not used)
Example output	"S-1-5-21-1004336348-1177238915-682003330"

MySQL extractors

MYSQL_SUCCESS

Returns "true" if the connection was established and the statement was accepted by the server, "false" otherwise.

Field	Value
Expression	(not used)

MYSQL_ROW_COUNT

Returns the number of rows a query returned.

Field	Value
Expression	(not used)
Example output	"3"

MYSQL_AFFECTED_ROWS

Returns the number of rows affected by an update/DDL statement (-1 for a query).

Field	Value
Expression	(not used)
Example output	"1"

MYSQL_COLUMN

Returns a single cell from the result set, the primary chaining primitive. Column names match case-insensitively; a missing cell or SQL NULL returns an empty string.

Field	Value
Expression	column (first row), row.column, or row.colIndex, for example email, 0.email, 2.1
Example output	"[email protected]"

MYSQL_ERROR_CODE

Returns the vendor error code from a rejected statement (0 on success). Useful for branching on the exact failure.

Field	Value
Expression	(not used)
Example output	"1146"

MYSQL_JSON

Returns the whole result set as a JSON array (each row an object of column → value).

Field	Value
Expression	(not used)
Example output	"[{\"id\":\"1\",\"username\":\"jdoe\"}]"

---

MongoDB extractors

MONGO_SUCCESS

Returns "true" if the operation was accepted by the server, "false" otherwise.

Field	Value
Expression	(not used)
Example output	"true"

MONGO_DOC_COUNT

Returns the number of documents returned (Find/Aggregate) or matched (Count).

Field	Value
Expression	(not used)
Example output	"3"

MONGO_FIELD

Reads a field out of the returned documents. Not limited to the first document: a selector reaches any document, and [*] reaches every one.

Field	Value
Expression	field (first doc), [n].field (doc n), [*].field (all docs, newline-joined), nested via dots (address.city)
Example output	"alice"

MONGO_ERROR_CODE

Returns the MongoDB error code from a rejected operation (0 on success).

Field	Value
Expression	(not used)
Example output	"26"

MONGO_JSON

Returns the whole result as a JSON array of the returned documents.

Field	Value
Expression	(not used)
Example output	"[{\"_id\":1,\"name\":\"alice\"}]"

---

PostgreSQL extractors

POSTGRES_SUCCESS

Returns "true" if the statement was accepted by the server, "false" otherwise.

Field	Value
Expression	(not used)
Example output	"true"

POSTGRES_ROW_COUNT

Returns the number of rows returned by a query.

Field	Value
Expression	(not used)
Example output	"3"

POSTGRES_AFFECTED_ROWS

Returns the number of rows affected by an update/DDL statement (-1 for a query).

Field	Value
Expression	(not used)
Example output	"1"

POSTGRES_COLUMN

Reads a single cell out of the result set, the primary chaining primitive.

Field	Value
Expression	column (first row), row.column (row n), or row.colIndex (e.g. email, 0.email, 2.1)
Example output	"[email protected]"

POSTGRES_ERROR_CODE

Returns the SQLSTATE of a rejected statement (PostgreSQL’s error identity, e.g. 42P01 for an undefined table). Empty on success.

Field	Value
Expression	(not used)
Example output	"42P01"

POSTGRES_JSON

Returns the whole result set as a JSON array of row objects.

Field	Value
Expression	(not used)
Example output	"[{\"id\":1,\"username\":\"alice\"}]"

---

Redis extractors

REDIS_SUCCESS

Returns "true" when the transport was fine and every exchange met its expectation, "false" otherwise.

Field	Value
Expression	(not used)

REDIS_REPLY

Returns the reply text of one exchange.

Field	Value
Expression	A command, for example GET or GET user:1, or blank for the last exchange
Example output	"hello from virtuprobe"

Reads the lossless rendering rather than the printable one, so a value carrying a line break can still be matched by a pattern carrying one.

REDIS_REPLY_TYPE

Returns the RESP kind of a reply: SIMPLE_STRING, ERROR, INTEGER, BULK_STRING, ARRAY, NULL and so on.

Field	Value
Expression	A command, or blank for the last exchange
Example output	"BULK_STRING"

Worth asserting on its own, because a key that is absent answers NULL while a key holding an empty string answers BULK_STRING, and the reply text is empty either way.

REDIS_INTEGER

Returns an integer reply as text: DBSIZE, TTL, EXISTS, the count from a DEL.

Field	Value
Expression	A command, or blank for the last exchange
Example output	"9"

Blank when the exchange answered with something that is not an integer, rather than zero. Zero is a real Redis answer, so returning it for “not an integer” would be a wrong answer rather than a missing one.

REDIS_ARRAY_ITEMS

Returns the elements of an array reply, one per line, which is the shape an ITERATE step consumes.

Field	Value
Expression	A command, or blank for the last exchange
Example output	"first\nsecond\nthird"

A SCAN reply is a two element array of a cursor and the keys, so the keys are unwrapped. Without that, every iteration over a key search would start with the cursor and iterate it as though it were a key.

REDIS_INFO_FIELD

Returns one field out of an INFO reply.

Field	Value
Expression	The field name, for example redis_version or connected_clients. Required
Example output	"7.2.4"

INFO answers a bulk string of name:value lines grouped under section headers, so a field lookup is the only practical way to assert on one number out of a hundred.

REDIS_ERROR

Returns the server error message of an exchange, blank when it did not answer with an error.

Field	Value
Expression	A command, or blank for the last exchange
Example output	"NOAUTH Authentication required."

SQL Server extractors

MSSQL_SUCCESS

Returns "true" when the batch ran and the server did not report an error, "false" otherwise.

Field	Value
Expression	(not used)

MSSQL_COLUMN

Returns one column value from a result set.

Field	Value
Expression	A column name, optionally with a row index, for example total
Example output	"42"

MSSQL_ROW_COUNT

Returns how many rows came back. Under the row cap this is the number you received, not the number the table holds, so pair it with MSSQL_TRUNCATED when the difference matters.

MSSQL_RESULT_COUNT

Returns how many result sets the batch produced. A procedure that selects twice returns "2".

MSSQL_AFFECTED_ROWS

Returns the rows an INSERT, UPDATE or DELETE touched.

MSSQL_OUT_PARAM

Returns one OUT parameter of a procedure call, by name.

Field	Value
Expression	The parameter name

MSSQL_MESSAGES

Returns what the server printed, from PRINT or from RAISERROR at severity 10 or below.

An ordinary query leaves this empty, which is correct and is also what an extractor that never ran returns, so do not use an empty result on its own as evidence that a step behaved.

MSSQL_TRUNCATED

Returns "true" when the row cap was reached. This is the extractor a chain needs in order to require that nothing was cut off, because a row count alone cannot tell the data apart from our limit.

MSSQL_ERROR_CODE

Returns the message number, for example 208 for an invalid object name. That is the number every Microsoft reference is indexed by.

MSSQL_SQL_STATE

Returns the SQLSTATE. Coarser than the message number, and the one to use in a chain that has to run against more than one database engine.

MSSQL_JSON

Returns a value out of a JSON column.

FTP extractors

FTP_SUCCESS

Returns "true" when the transport was fine and every command met its expectation, "false" otherwise.

Field	Value
Expression	(not used)

FTP_REPLY_CODE

Returns a reply code, for example 226 for a completed transfer.

Field	Value
Expression	A command, or blank for the last exchange

FTP_REPLY_LINES

Returns the reply text, including every line of a multi-line reply such as the banner.

FTP_LIST

Returns the directory listing, one entry per line.

Newline separated so that an ITERATE step can walk it directly, which is what makes the chain follow what the server actually holds rather than a list of paths written in advance.

FTP_FILE_CONTENT

Returns the contents of a downloaded file, as text.

FTP_FILE_HEX

Returns the same bytes as hex, for a file that is not text.

FTP_BYTE_COUNT

Returns how many bytes were transferred.

Freestyle extractors

Freestyle probes run a list of labeled exchanges down one connection, so most of these take an exchange label as the expression. Leaving it blank addresses the last exchange.

FREESTYLE_SUCCESS

Returns "true" if the probe completed, "false" otherwise.

Field	Value
Expression	(not used)
Example output	"true"

FREESTYLE_TEXT

Returns the bytes received in an exchange, as text.

Field	Value
Expression	Exchange label, or blank for the last exchange
Example output	"220 mail.example.com ESMTP"

FREESTYLE_HEX

Returns the bytes received, as hex. This is the form a later exchange’s Hex payload accepts directly, so it is how you feed one reply back into the next request.

Field	Value
Expression	Exchange label, or blank for the last exchange
Example output	"3220302e310d0a"

FREESTYLE_HEX_SLICE

Returns bytes at a known position, as hex, for a binary reply with no text form. A slice that runs past the end is clamped rather than refused, because a short reply is itself a finding.

Field	Value
Expression	label|offset:length, e.g. header|4:2
Example output	"00a3"

FREESTYLE_REGEX

Applies a regular expression to the received text and returns the first capture group, or the whole match when the pattern has none. Use it to pull a session id, a version or a status word out of a banner.

Field	Value
Expression	label|regex, or a bare regex against the last exchange
Example output	"1.4.2"

FREESTYLE_BYTE_COUNT

Returns how many bytes came back.

Field	Value
Expression	Exchange label, or blank for the last exchange
Example output	"512"

FREESTYLE_OUTCOME

Returns the transport outcome, so a chain can branch on how an exchange ended rather than only on whether it worked.

Field	Value
Expression	Exchange label, or blank for the last exchange
Example output	"RST"

Generic extractors

CONSTANT

Stores a fixed value into a variable, which is how you pass a hardcoded value or a default through the chain context.

Field	Value
Expression	The literal string value to store

REGEX

Applies a regular expression to the string representation of the step response and returns the first capture group (or the full match if no groups are defined).

Field	Value
Expression	Regex pattern, e.g. token=([A-Za-z0-9]+)
Example output	"abc123"

Most useful when the response is already a plain string, for example on an IMAP step whose exchange lines contain structured text, or in the scripting engine where you can pass any string response. For HTTP responses, combine with HTTP_BODY_RAW in a scripting context if you need regex over the body.
