Proxy

VirtuProbe includes a built-in MITM proxy that sits between your client and the target server. A DevTools-style UI lets you inspect every exchange in real time, including raw bodies, decompressed payloads and binary frames.

The proxy understands more than HTTP. It recognizes the protocol on each connection that passes through it and decodes it, so the capture feed labels an exchange as SMTP, DNS or MySQL rather than raw bytes. From a captured exchange you can draft a mock in one click. Everything reaches the proxy the same way, through a SOCKS5 tunnel, and HTTP is recognized and acted on behind it like any other protocol.

Note

The proxy requires the Engineering tier or above, as do the interception rules below (mock, rewrite, fault, and script actions).

Starting the proxy

Set the Port the proxy should listen on in the toolbar, then click Start. Point your client at localhost on that port as a SOCKS5 proxy.

Setting	Default
Host	localhost
Port	1080

Any TCP client works: a mail client, a DNS resolver, a database driver or a browser. Route its connection through the tunnel and the proxy decodes whichever protocol it finds.

Caution

An HTTP client has to be configured for SOCKS5. With curl, that is curl --socks5-hostname localhost:1080 https://example.com rather than curl -x. A client pointed at the port as an HTTP proxy is refused as soon as it connects, and the error it reports says nothing about the proxy.

Protocols the proxy decodes

The proxy recognizes and decodes these protocols on the connections that flow through it:

HTTP, SMTP, IMAP, DNS over TCP, MySQL, PostgreSQL, MongoDB, SMB and Kerberos.

Each exchange is tagged with its protocol in the capture feed. The text protocols read as text; the binary ones render as a hex view next to a decoded summary. A connection the proxy does not recognize is relayed unchanged and shown as raw bytes, so switching the proxy on never changes what your client sees.

Inspecting exchanges

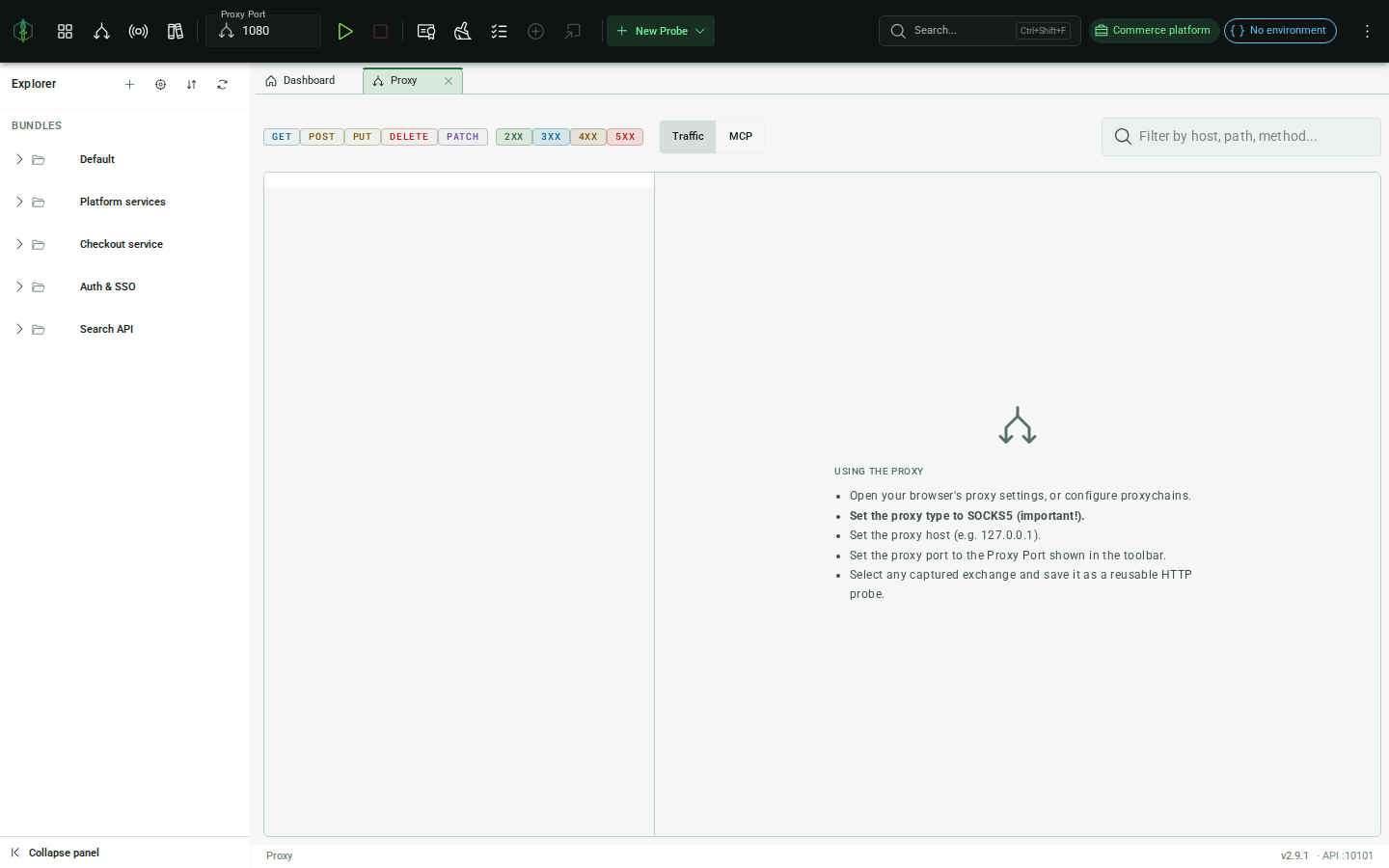

Each exchange appears in the list as it flows through the proxy. Click an entry to inspect it.

The detail panel shows:

• Protocol: the protocol the proxy recognized, with a decoded summary and a hex view for the binary protocols
• Request: raw bytes sent by the client
• Response: raw bytes returned by the server
• Direction and timestamp for each chunk

Body decompression

Compressed response bodies (gzip, deflate, Brotli) can be decompressed. Click Decompress on an exchange to see the readable payload. All three encodings are supported, including Brotli which browsers cannot decompress natively via the standard API.

SSL/TLS traffic

The proxy can handle SSL connections. For HTTPS interception, configure your client to trust the proxy’s certificate.

Caution

MITM interception of TLS traffic requires the target client to trust the proxy’s CA certificate. Use this only against systems you own or have explicit authorization to test.

HTTP through the tunnel

The proxy terminates and parses each HTTP/1.1 request, with HTTPS handled by an on-the-fly leaf certificate signed by the proxy CA. Because it understands whole requests and responses, it can act on them with interception rules.

With no rules defined, every request is forwarded to the real target and still feeds the capture view, so you can switch the proxy on without changing what your client sees.

Interception rules (mocking & service virtualization)

Interception rules turn the proxy into a service virtualization layer: match live requests and mock, rewrite, delay, or script their responses. Manage them from the Interception Rules editor in the proxy view.

Note

The match fields and actions below are the full set for HTTP. For the other protocols, draft a mock from a captured exchange with Add Mock. Interception rules require the Engineering tier or above.

Rules are organized into rule sets. Within a set, rules are evaluated top to bottom and the first match wins, so order matters. Each rule has a match and an action.

Matching

Every match field is optional; a blank field matches anything. A rule fires when all of its filled-in conditions match:

Field	Matches on
Method	HTTP method (GET, POST, …)
Host pattern	Request host
Path pattern	Request path, supporting {segment} placeholders and * wildcards
Header name / Header value contains	A request header and (optionally) a substring of its value
Body contains	A substring of the request body

Actions

Action	What it does
Mock	Return a synthetic response you define, with its own status, reason, Content-Type, headers and body, without the request ever reaching the real server. Stand in for a service that isn’t built yet.
Forward	Pass the request through to the real target unchanged (the default behavior when no rule matches).
Rewrite	Forward to the target, but apply find/replace operations to the live request and/or response, on headers or body, with optional regular expressions.
Fault	Forward to the target, then inject a fault into the genuine response, an error status or added latency, to exercise how your client handles failure.
Script	Run a JavaScript or Groovy script with the request bound (method, path, body, headers, host) and a mutable response (status, reason, headers, body). Mutate the response or return a map, which is how you build a dynamic mock that reacts to the request.

A Latency (ms) delay can be added to any action, applied before the response is written, which is how you simulate a slow dependency.

Rule sets are saved alongside the rest of your workspace, so your mocks and virtual services persist between sessions.

Tip

A common pattern: put specific Mock rules at the top of a set and leave everything else to fall through to the real service. Because the first match wins, you virtualize just the endpoints you need and pass the rest straight through.

Add a mock from a captured exchange

You do not have to write a mock rule from scratch. Select a captured exchange and click Add Mock. VirtuProbe drafts a matching mock rule from it, pre-filled and tagged with the protocol it captured, and hands it to you to review before you save it into a rule set.

Add Mock is available for the protocols VirtuProbe can stand in for: HTTP, SMTP, IMAP, DNS and the database protocols (MySQL, PostgreSQL, MongoDB). For a database exchange the draft covers the login only. It returns a canned authentication error rather than a synthesized result set, which is enough to test how your client handles a database that turns it away. SMB and Kerberos are observe only in the proxy, so they carry no Add Mock: one captured binary session is not enough to stand in for a server.
